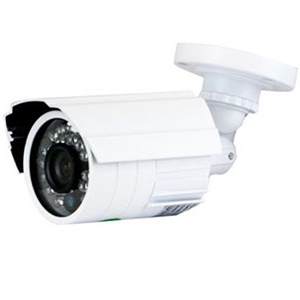

24LEDs Ø5mm IR Water-Proof Camera
◆20-25M IR Distance
◆24pcs Ø5mm IR LEDs
◆3.6mm Lens, (6mm/8mm Optional)
◆Cable Through Bracket Protection
◆600TVL/700TVL support Cable OSD Optional
◆Black/White Case
|
Model |
KH-W842E2 |
KH-W860E2 |
KH-W870E2 |
|
Image Sensor |
1/3" COLOR SONY Super HAD CCD |
1/3" COLOR SONY Super HADⅡ CCD |
|
|
Horizontal Resolution |
420TVL |
600TVL |
700TVL |
|
Image Resolution |
PAL:500(H)×582(V), |
PAL:752(H)×582(V), |
PAL:976(H)×582(V), |
|
NTSC:510(H)×492(V) |
NTSC:768(H)×494(V) |
NTSC:976(H)×494(V) |
|
|
IR LEDs |
24pcs Ø5mm IR LEDs |
||
|
IR Distance |
20-25M |
||
|
Lens |
3.6mm Lens, (6mm/8mm Optional) |
||
|
Minimum illuminator |
0.1LUX/F1.2 |
0.01LUX/F1.2 |
|
|
S/N Ratio |
>48dB |
>58dB |
|
|
AES |
1/50-1/60,000sec(PAL),1/60-1/60,000sec(NTSC) |
||
|
WDR |
— |
D-WDR |
D-WDR |
|
DNR |
— |
2D-DNR |
3D-DNR |
|
OSD |
— |
OSD |
OSD |
|
White Balance |
ATW |
ATW/Manual/Auto |
|
|
AGC |
AUTO |
Auto/Manual/Off |
|
|
BLC |
ON |
ON/OFF |
|
|
Scanning System |
NTSC:525 Lines 2:1 Interlace/PAL:625 Lines 2:1 Interlace |
||
|
synchronization System |
Internal Synchronization |
||
|
Video Output |
1.0Vp-p,75Ω |
||
|
Voltage |
DC12V (9V ~ 15V) |
||
|
Operating Environment |
-20°C~60°C / 10% ~ 95%RH ( AUTO Temperature Control Optional) |
||
|
Dimension |
15.8cm x 5.8cm x 5.5cm |
||
|
Weight |
0.32kg |
||
