Dome Camera With Aluminium Alloy Housing
Description:
The W3 Vandal Dome Camera Series is a new design and superior choice for both indoor and outdoor CCTV surveillance installations. The KH-D870W3 uses a Sony 1/3" Super HAD CCD II image sensor and offers 700 TVL resolution in Color and in night vision mode (Black & White Infrared). This camera offers superior low light performance down to 0.00004 LUX black and white without
the use of IRs. Camera with unique 4-axis structure design, easy to rotate and pan manually for getting the idea view and surveillance effects under different installation environment. The camera is equipped with and 2.8-12mm vari-focal lens. This is high performance dome camera with flexibility for use in a wide range of applications.
Key Features:
◆20-25M IR Distance
◆30pcs Ø5mm Black IR LEDs
◆CS6mm Lens
◆OSD Optional
◆2.8-12 mm 2.0 Megapixel auto iris ICR lens

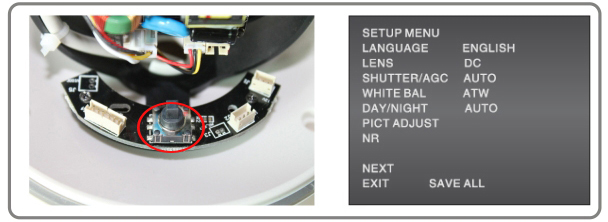

◆Built in OSD Menu to tweak Settings Optional
◆ Powerful Video Vision with Auto Backlight Control ◆Power Supply:DC12V/AC24V Optional
Specification:
|
Model |
KH-D84W3 |
KH-D860W3 |
KH-D870W3 |
|
Image Sensor |
1/3" COLOR SONY Super HAD CCD |
1/3" COLOR SONY Super HADⅡ CCD |
|
|
Horizontal Resolution |
420TVL |
600TVL |
700TVL |
|
Image Resolution |
PAL:500(H)×582(V), |
PAL:752(H)×582(V), |
PAL:976(H)×582(V), |
|
NTSC:510(H)×492(V) |
NTSC:768(H)×494(V) |
NTSC:976(H)×494(V) |
|
|
IR LEDs |
30pcs Ø5mm IR LEDs |
||
|
IR Distance |
20-25m |
||
|
Lens |
2.8-12mm Vari-focal Lens, (4-9mm lens Optional) |
||
|
Minimum illuminator |
0.1LUX/F1.2 |
0.01LUX/F1.2 |
|
|
S/N Ratio |
>48dB |
>58dB |
|
|
AES |
1/50-1/60,000sec(PAL),1/60-1/60,000sec(NTSC) |
||
|
WDR |
— |
D-WDR |
D-WDR |
|
DNR |
— |
2D-DNR |
3D-DNR |
|
OSD |
— |
OSD |
OSD |
|
White Balance |
ATW |
ATW/Manual/Auto |
|
|
AGC |
AUTO |
Auto/Manual/Off |
|
|
BLC |
ON |
ON/OFF |
|
|
Scanning System |
NTSC:525 Lines 2:1 Interlace/PAL:625 Lines 2:1 Interlace |
||
|
synchronization System |
Internal Synchronization |
||
|
Video Output |
1.0Vp-p,75Ω |
||
|
Voltage |
DC12V (9V ~ 15V) |
||
|
Operating Environment |
-20°C~60°C / 10% ~ 95%RH ( AUTO Temperature Control Optional) |
||
|
Dimension |
14x12cm |
||
|
Weight |
1.4kg |
||
