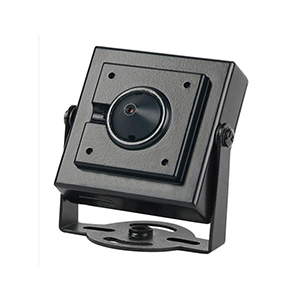

Mini Pin Hole Cameras
◆Widely Installed for ATM
◆3.7mm Mental Pin-hole Lens
◆Dimensions:36mm(L)x36mm(W)x15mm(H)
◆Low Heating
◆Easy Installation
|
Model |
FK-M842F |
FK-M870F |
|
Image Sensor |
1/3" COLOR SONY Super HAD CCD |
1/3" COLOR SONY Super HADⅡ CCD |
|
Horizontal Resolution |
420TVL |
700TVL |
|
Image Resolution |
PAL:500(H)×582(V), |
PAL:976(H)×582(V), |
|
NTSC:510(H)×492(V) |
NTSC:976(H)×494(V) |
|
|
IR LEDs |
— |
|
|
IR Distance |
— |
|
|
Lens |
3.6 mm Lens |
|
|
Minimum illuminator |
0.1LUX/F1.2 |
0.01LUX/F1.2 |
|
S/N Ratio |
>48dB |
>58dB |
|
AES |
1/50-1/60,000sec(PAL),1/60-1/60,000sec(NTSC) |
|
|
WDR |
— |
D-WDR |
|
DNR |
— |
3D-DNR |
|
OSD |
— |
— |
|
White Balance |
ATW |
ATW/Manual/Auto |
|
AGC |
AUTO |
Auto/Manual/Off |
|
BLC |
ON |
|
|
Scanning System |
NTSC:525 Lines 2:1 Interlace/PAL:625 Lines 2:1 Interlace |
|
|
synchronization System |
Internal Synchronization |
|
|
Video Output |
1.0Vp-p,75Ω |
|
|
Voltage |
DC12V (9V ~ 15V) |
|
|
Operating Environment |
-20℃~60℃ / 10% ~ 95%RH |
|
|
Dimension |
36mm(L)x36mm(W)x15mm(H) |
|
|
Weight |
0.18kg |
|
